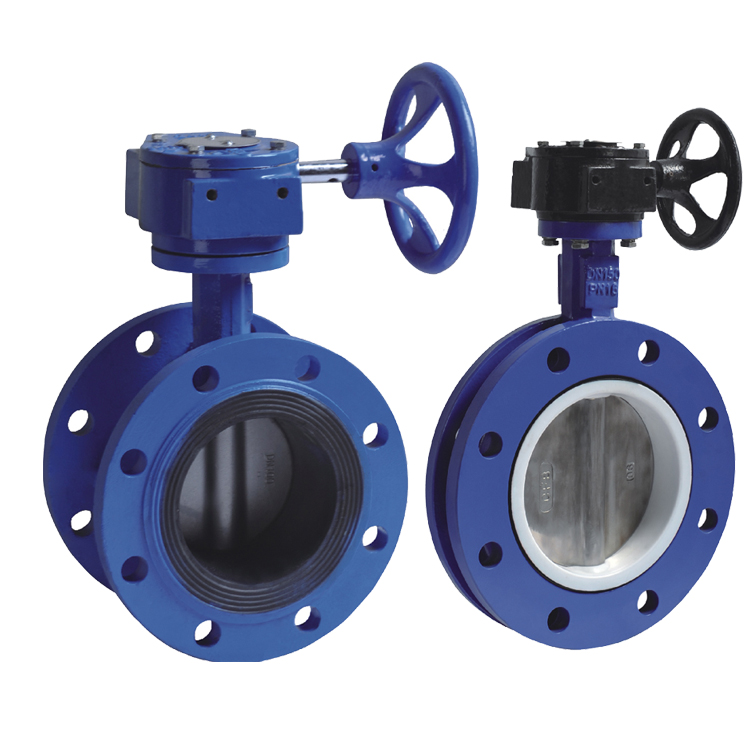

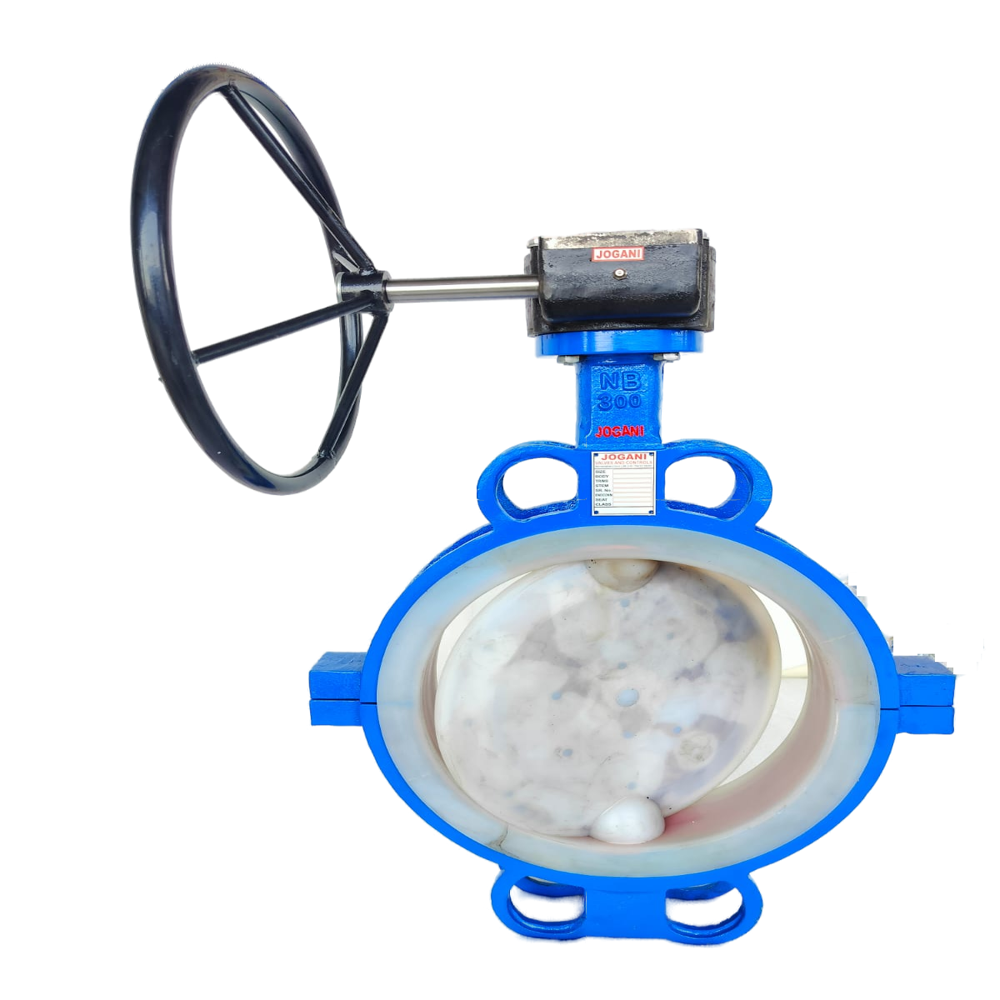

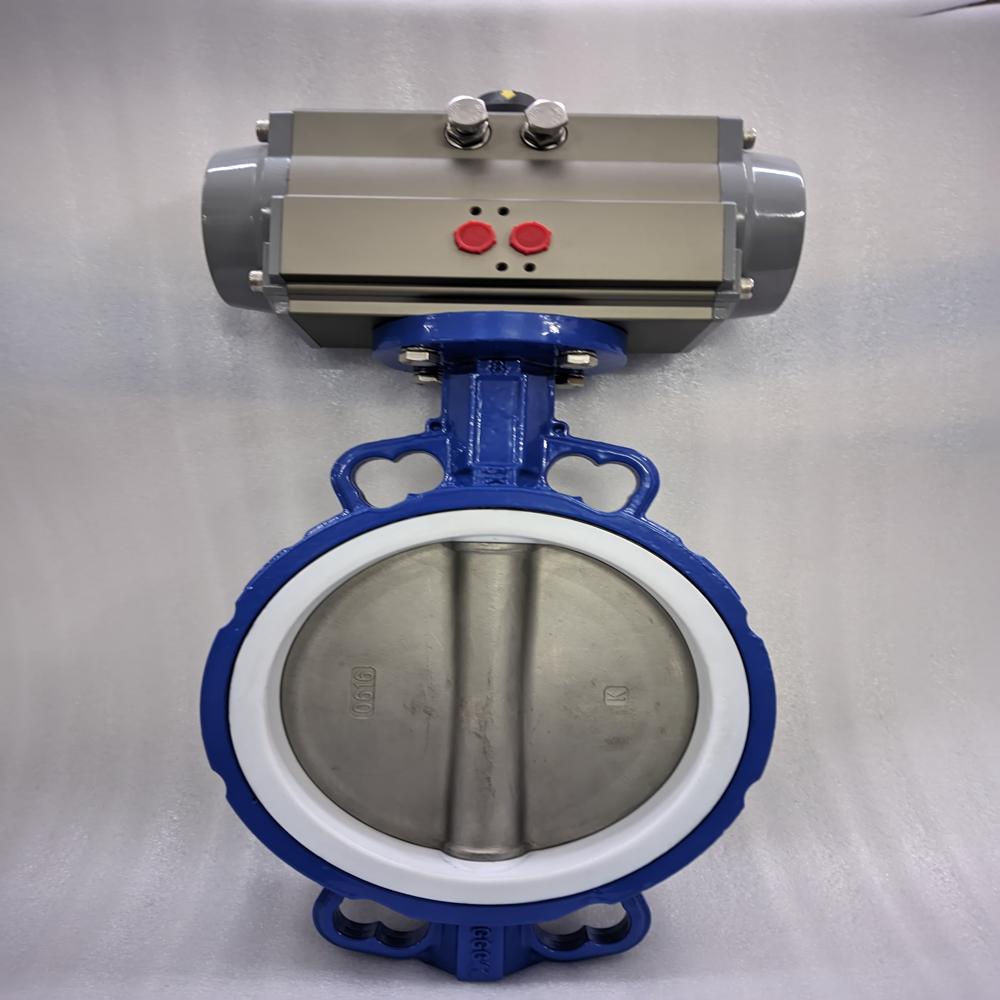

3 inch PTFE Lined Butterfly Valves

3 inch PTFE Lined Butterfly Valves Specification

Valve Size
3 Inch

Connection Type
Wafer Flange

Valve Type
PTFE LINED BUTTERFLY VALVE

Features
Corrosion Resistant, Bubble-tight Shutoff, Low Torque Operation

Control System
Manual Lever Operated

Material
WCB, SS 304 , SS316, CI, CS

Structure
Butterfly

Usage
Industrial

Application
water, stem, oil, chemical, air

Voltage
230 Volt (v)

Sealing
M TO M OR SOFT

Type
PTFE Lined Butterfly Valve

Size
different available

Power
2, 3, 0 Volt (v)

Height
24 Inch (in)

Pressure
3, 0 kgf/cm2

Product Type
ptfe lined buuterfly valve

Media
Gas, Water, Acid

Port Size
3 Inch

Weight
15 Kilograms (kg)

Color
blue, silver

Length
22 Inch (in)

Width
22 Inch (in)

Temperature
100 Celsius (oC)

Disc
Stainless Steel with PTFE lining

Pin
Stainless Steel

Operation
Quarter-Turn (90° Rotation)

Bonnet
One-piece body design

Design Standard
API 609, ISO 5752

Handle Material
Ductile Iron/Epoxy Coated

Lining Thickness
Minimum 3 mm PTFE

Weight
Approx. 6-8 kg (subject to design)

Fire Safe Design
No

Face to Face Length
As per DIN EN 558 Series 20

Shaft Material
Stainless Steel AISI 410/304/316

Applications
Chemical Processing, Water Treatment, Pharmaceutical, Food & Beverage

Suitable Flange Drilling
ANSI 150, DIN PN10/16, BS

Torque
Low Operating Torque

Seat Type
Molded PTFE

Mounting Pad
ISO 5211 Compliant

Antistatic Device
Available on request

End Connection
Wafer suitable for mounting between flanges

Stem Sealing
Double O-ring and PTFE Packing

Operated By
Hand Lever or Gear Operator

Color
Metallic Silver with White Lining

Leakage Class
Bubble Tight, Class VI

3 inch PTFE Lined Butterfly Valves Trade Information

Minimum Order Quantity
1 Piece

FOB Port
2 WAY

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Free samples are available

Packaging Details
AS PER COUSTOMER REQUIRED OR STANDER

Main Export Market(s)
Central America, North America, South America, Eastern Europe, Middle East, Africa, Western Europe, Asia, Australia

Main Domestic Market
All India

Certifications
ISO, CE

About 3 inch PTFE Lined Butterfly Valves

Discover the new release of our 3 Inch PTFE Lined Butterfly Valves, now at a reduced price! As a laureate in valve engineering, this preeminent solution features a lofty design standard as per API 609 and ISO 5752. With a robust stainless steel shaft (AISI 410/304/316), bubble-tight sealing, and a molded PTFE seat, it assures corrosion resistance and superior chemical compatibility. Order today for best value and ensure optimal performance in industrial environments requiring reliable and low-torque quarter-turn operation.

Versatile Surface Application & Features

These 3 inch PTFE Lined Butterfly Valves offer unmatched resistance to acids, alkalis, gases, water, and slurry. Featuring a molded PTFE seat and stainless steel disc with a minimum 3mm lining, they excel in chemical processing, pharmaceuticals, and water treatment. Designed for bubble-tight shutoff and low-torque manual operation, they deliver reliable results and durability for everyday industrial use.

Efficient Dispatching & Packaging Solutions

Our company offers secure transport services from Indias FOB port for seamless dispatching of 3 inch PTFE Lined Butterfly Valves. Packaging details include sturdy cartons or crates to ensure safety during transit. Samples are available upon request, letting you assess product quality before bulk orders. Take advantage of our trustworthy dispatching services and competitive offers for your industrial procurement needs.

FAQs of 3 inch PTFE Lined Butterfly Valves:

Q: How do I install the 3 inch PTFE Lined Butterfly Valve between flanges?

A: The valve is designed with a wafer-type body suitable for mounting between flanges drilled to ANSI 150, DIN PN10/16, or BS standards. Ensure correct flange alignment and follow the manufacturers installation guidelines for optimal sealing.

Q: What industries benefit most from these butterfly valves?

A: This product is widely used in chemical processing, water treatment plants, pharmaceutical manufacturing, and food & beverage applications due to its corrosion-resistant PTFE lining and bubble-tight shutoff.

Q: When can I expect dispatching after placing an order?

A: Dispatching typically occurs within a few business days after order confirmation, depending on stock availability and destination. Transport services from Indias FOB port ensure efficient delivery.

Q: Where can I request a sample before purchasing in bulk?

A: You can request a product sample through our sales team prior to bulk ordering, ensuring the valve meets your requirements for application and quality.

Q: What is the benefit of the double O-ring and PTFE packing on the stem?

A: The double O-ring and PTFE packing provide superior stem sealing, minimizing leakage and enhancing operational reliability in corrosive or high-pressure environments.

Q: How does the manual operation process work?

A: The valve operates via a hand lever or gear operator, allowing precise quarter-turn (90) control for shutoff or flow regulation with low operating torque.
